Introduction to the fish egg incubation system 6 jars

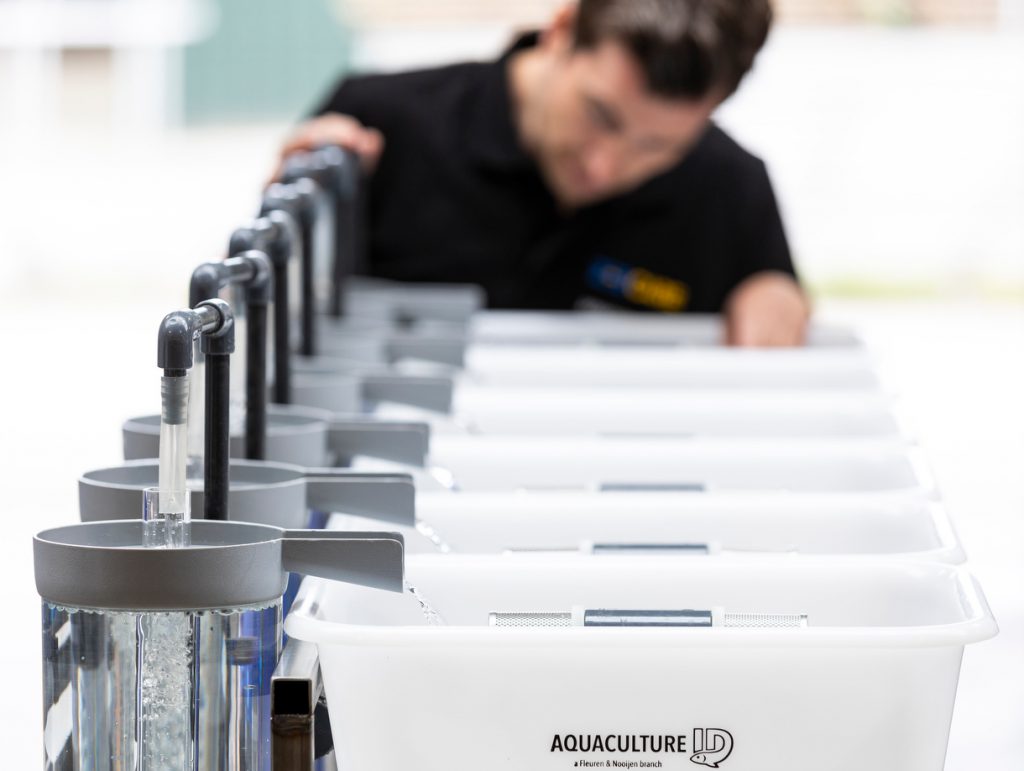

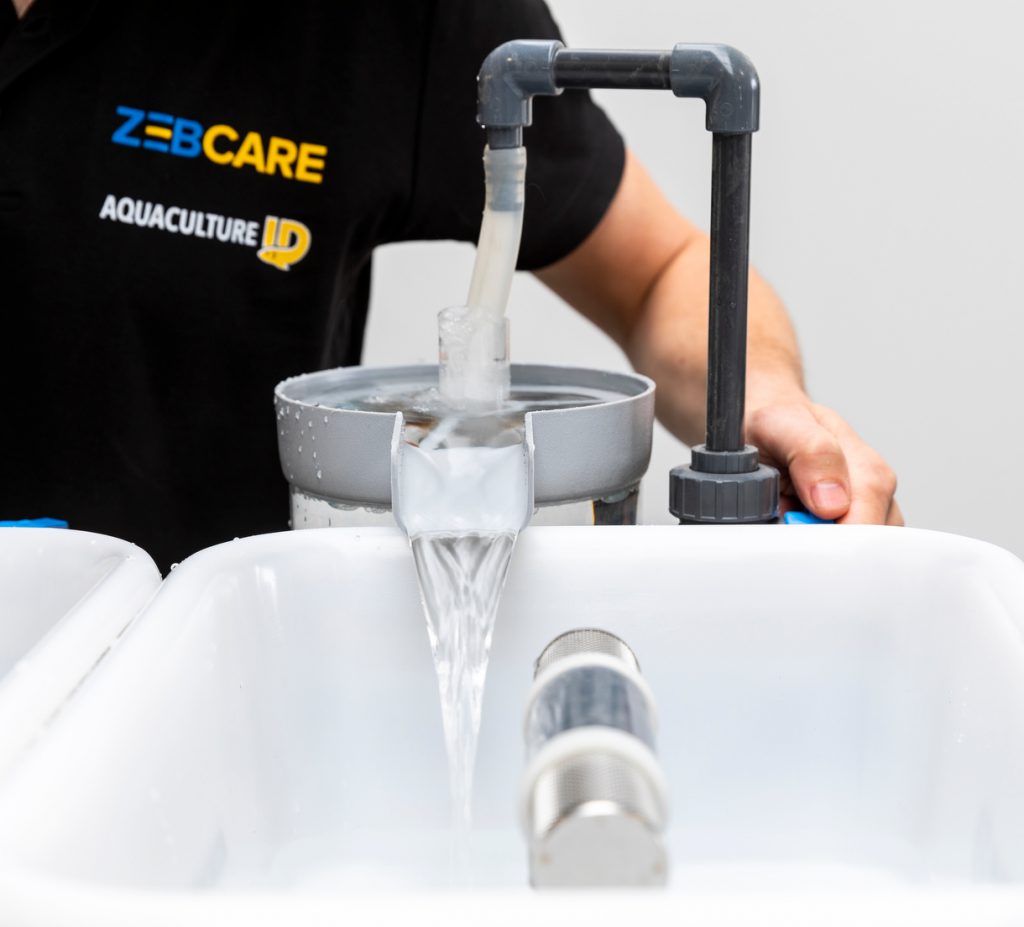

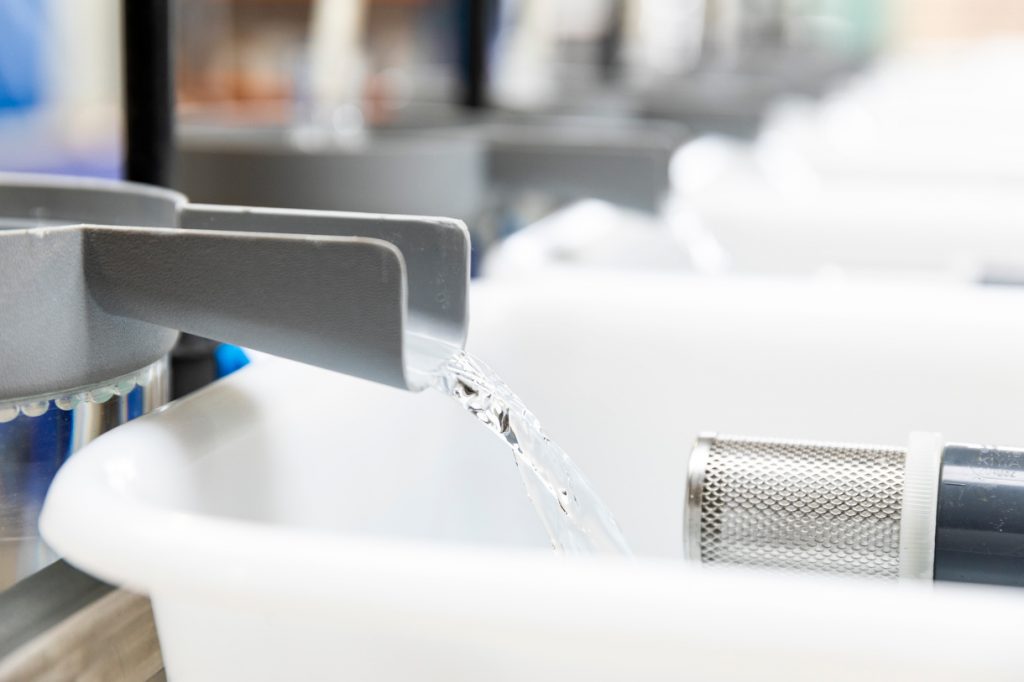

Fish eggs will be transferred to one of the six Mc Donald hatching jars of the fish egg incubation system plug and play. Each hatching jar has a volume of 8 litres at a density of max. 20,000 to 60,000 eggs per jar, resulting in a total density of 120,000 to 360,000 eggs per cycle (depending on the fish species). Please check out our smaller fish egg incubator (with three hatching jars) if you require a system for smaller production. After a period of 3 to 5 days the eggs will hatch. After hatching the yolk sac fry will flow out of the jar into a white fry reception tank. After complete yolk sac absorption, the fry should be transferred to the fingerling systems.

Specifications of the system:

Specifications of the fish egg incubation system 6 jars:

  • 6x Mc Donald hatching jars, approximately 8 litres each
  • 6x Tilapia fry reception tanks
  • Sedimentation filter tank (mechanical filtration) allows for removing all the solid particles from the system water flow.
  • Pump tank in which pump, freshwater supply and overflow pipe are installed.
  • Frame (out of SS304) with adjustable stands for easy system installation.
  • Connection for freshwater supply (1x floating valve (automatic filling), 1x ball valve (manual filling))
  • 1x Messner pump (48 W – 240 V) (made in Germany)
  • 1x 40-watt VGE UV-C unit with SS304 housing (made in The Netherlands)
  • PVC piping and fittings to connect the different system elements.

Very good hatching results have been realized for the Nile tilapia (Oreochromis Niloticus)

On request we can increase the amount of jars and/or equip fish egg incubation system with extra items like: heater, cooler, pH controller, etc.

Please contact us for more details and latest prices and/or if you want to make a modification request.

Specifications

  • Recirculating Aquaculture System
  • Very good hatching results for tilapia
  • Plug & Play installation
